How To Generate Extent Reports Version 3 in Selenium WebDriver

Generate Extent Reports Version 3 in Selenium WebDriver

Earlier we posted “How To Generate Extent Reports” and in that post, we used version 2 of extent reports. This post will guide you on “How To Generate Extent Reports Version 3 in Selenium“. Extent reports are the advanced Selenium Reporting Tool.

Extent Reports Version 4 – Latest Version [2019]

By default, TestNG generates a report. A small note on how to generate reports using TestNG. Once you execute your tests, TestNG generates a test-output folder at the root of your project. It contains a detailed report and a summary report. But to get an advanced selenium report, you need to go for Extent Reports. If you still, want to see how TestNG Reports look like – click here to see the TestNG Report in Selenium

Now lets move on to advanced selenium reports i.e., Extent Reports.

Pre-requisites to Advanced Selenium Reporting – Generate Extent Reports:

1. Java should be installed (Link to Install and setup Java )
2. TestNG should be installed (Link to Install TestNG )
3. Extent Report Version 3 Jars – Download
4. extent-config.xml – It allows to configure HTML Report

Steps To Generate Extent Reports:

1. Firstly, create a TestNG project in eclipse
2. Now download extent library files from the following link: https://extentreports.com/
3. Add the downloaded library files to your project
4. Create a java class say ‘ExtentReportsClass’ and add the following code to it

Code explanation is clearly given in the earlier post “How To Generate Extent Reports Version 2”

package extentReports;

import org.testng.Assert;
import org.testng.ITestResult;
import org.testng.SkipException;
import org.testng.annotations.AfterMethod;
import org.testng.annotations.AfterTest;
import org.testng.annotations.BeforeTest;
import org.testng.annotations.Test;

import com.aventstack.extentreports.ExtentReports;
import com.aventstack.extentreports.ExtentTest;
import com.aventstack.extentreports.Status;
import com.aventstack.extentreports.markuputils.ExtentColor;
import com.aventstack.extentreports.markuputils.MarkupHelper;
import com.aventstack.extentreports.reporter.ExtentHtmlReporter;
import com.aventstack.extentreports.reporter.configuration.ChartLocation;
import com.aventstack.extentreports.reporter.configuration.Theme;



public class ExtentReportsClassVersion3{
	ExtentHtmlReporter htmlReporter;
	ExtentReports extent;
	ExtentTest logger;


	@BeforeTest
	public void startReport(){

		htmlReporter = new ExtentHtmlReporter(System.getProperty("user.dir") +"/test-output/STMExtentReport.html");
		extent = new ExtentReports ();
		extent.attachReporter(htmlReporter);
		extent.setSystemInfo("Host Name", "SoftwareTestingMaterial");
		extent.setSystemInfo("Environment", "Automation Testing");
		extent.setSystemInfo("User Name", "Rajkumar SM");

		htmlReporter.config().setDocumentTitle("Title of the Report Comes here");
		htmlReporter.config().setReportName("Name of the Report Comes here");
		htmlReporter.config().setTestViewChartLocation(ChartLocation.TOP);
		htmlReporter.config().setTheme(Theme.STANDARD);
	}

	@Test
	public void passTest(){
		logger = extent.createTest("passTest");
		Assert.assertTrue(true);
		logger.log(Status.PASS, MarkupHelper.createLabel("Test Case Passed is passTest", ExtentColor.GREEN));
	}

	@Test
	public void failTest(){
		logger = extent.createTest("failTest");
		Assert.assertTrue(false);
		logger.log(Status.PASS, "Test Case (failTest) Status is passed");
		logger.log(Status.PASS, MarkupHelper.createLabel("Test Case (failTest) Status is passed", ExtentColor.GREEN));
	}

	@Test
	public void skipTest(){
		logger = extent.createTest("skipTest");
		throw new SkipException("Skipping - This is not ready for testing ");
	}

	@AfterMethod
	public void getResult(ITestResult result){
		if(result.getStatus() == ITestResult.FAILURE){
			//logger.log(Status.FAIL, "Test Case Failed is "+result.getName());
			//MarkupHelper is used to display the output in different colors
			logger.log(Status.FAIL, MarkupHelper.createLabel(result.getName() + " - Test Case Failed", ExtentColor.RED));
			logger.log(Status.FAIL, MarkupHelper.createLabel(result.getThrowable() + " - Test Case Failed", ExtentColor.RED));
		}else if(result.getStatus() == ITestResult.SKIP){
			//logger.log(Status.SKIP, "Test Case Skipped is "+result.getName());
			logger.log(Status.SKIP, MarkupHelper.createLabel(result.getName() + " - Test Case Skipped", ExtentColor.ORANGE));
		}
	}
	@AfterTest
	public void endReport(){
		extent.flush();
    }
}

extent-config.xml:

<?xml version="1.0" encoding="UTF-8"?>
<extentreports>
    <configuration>
        <!-- report theme -->
        <!-- standard, dark -->
        <theme>standard</theme>

        <!-- document encoding -->
        <!-- defaults to UTF-8 -->
        <encoding>UTF-8</encoding>

        <!-- protocol for script and stylesheets -->
        <!-- defaults to https -->
        <protocol>https</protocol>

        <!-- title of the document -->
        <documentTitle>Extent</documentTitle>

        <!-- report name - displayed at top-nav -->
        <reportName>Automation Report</reportName>

        <!-- location of charts in the test view -->
        <!-- top, bottom -->
        <testViewChartLocation>bottom</testViewChartLocation>

        <!-- custom javascript -->
        <scripts>
            <![CDATA[
                $(document).ready(function() {

                });
            ]]>
        </scripts>

        <!-- custom styles -->
        <styles>
            <![CDATA[

            ]]>
        </styles>
    </configuration>
</extentreports>

Refresh the project after execution of the above ExtentReportsClassVersion3.java file. You could find an HTML file named “STMExtentReport.html” in your test-output folder. Copy the location of the STMExtentReport.html file and open it by using any browser. You could see beautiful high rich HTML reports as shown below.

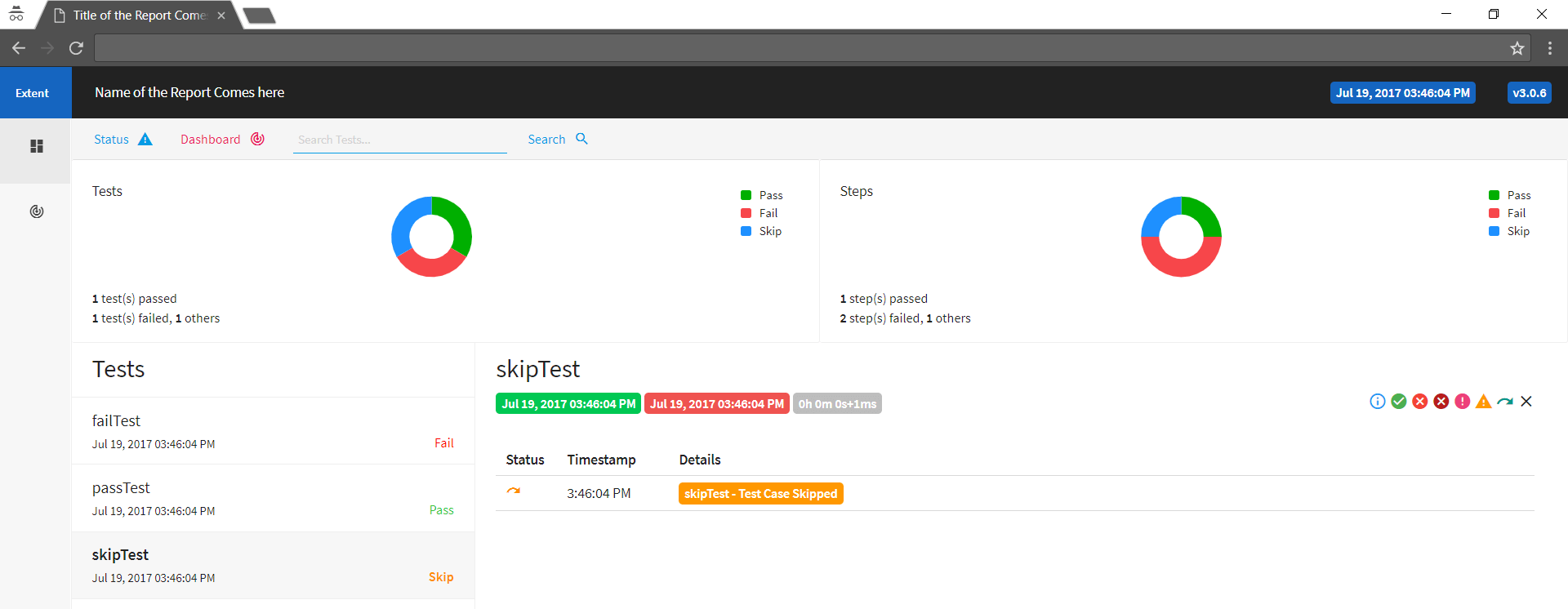

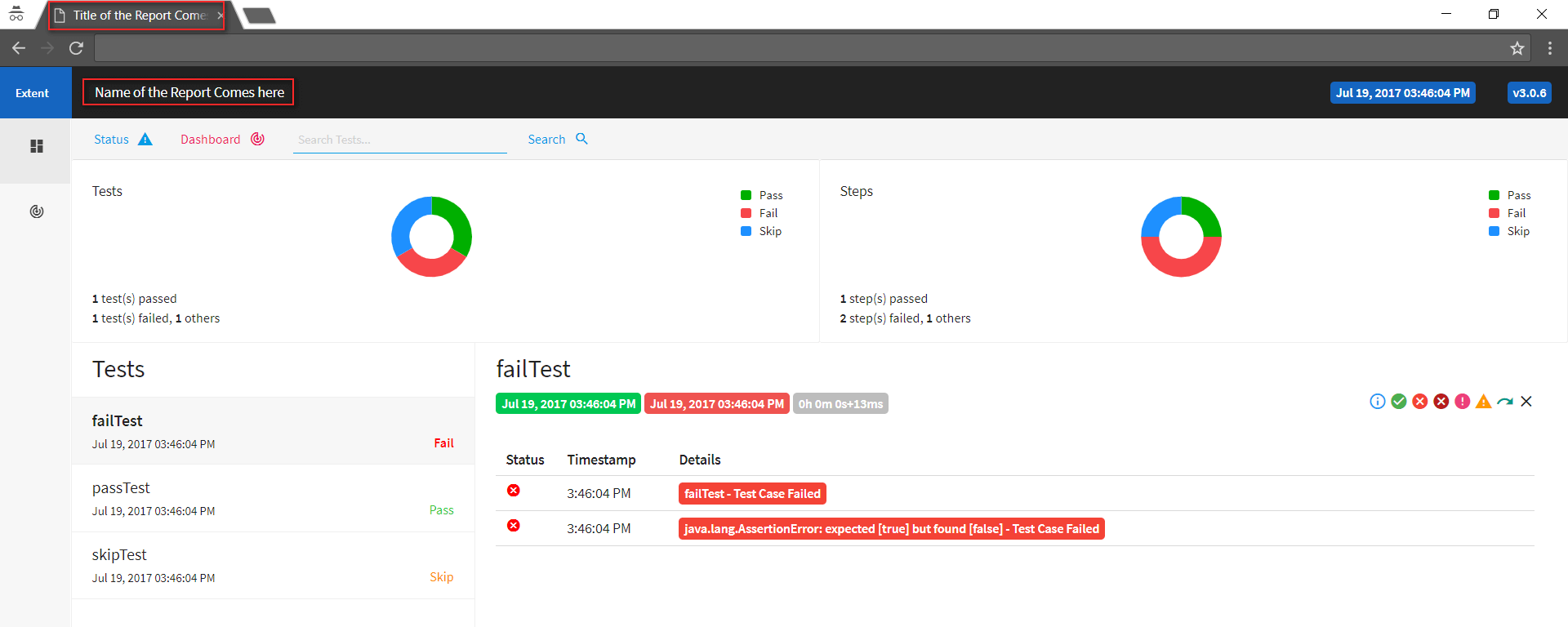

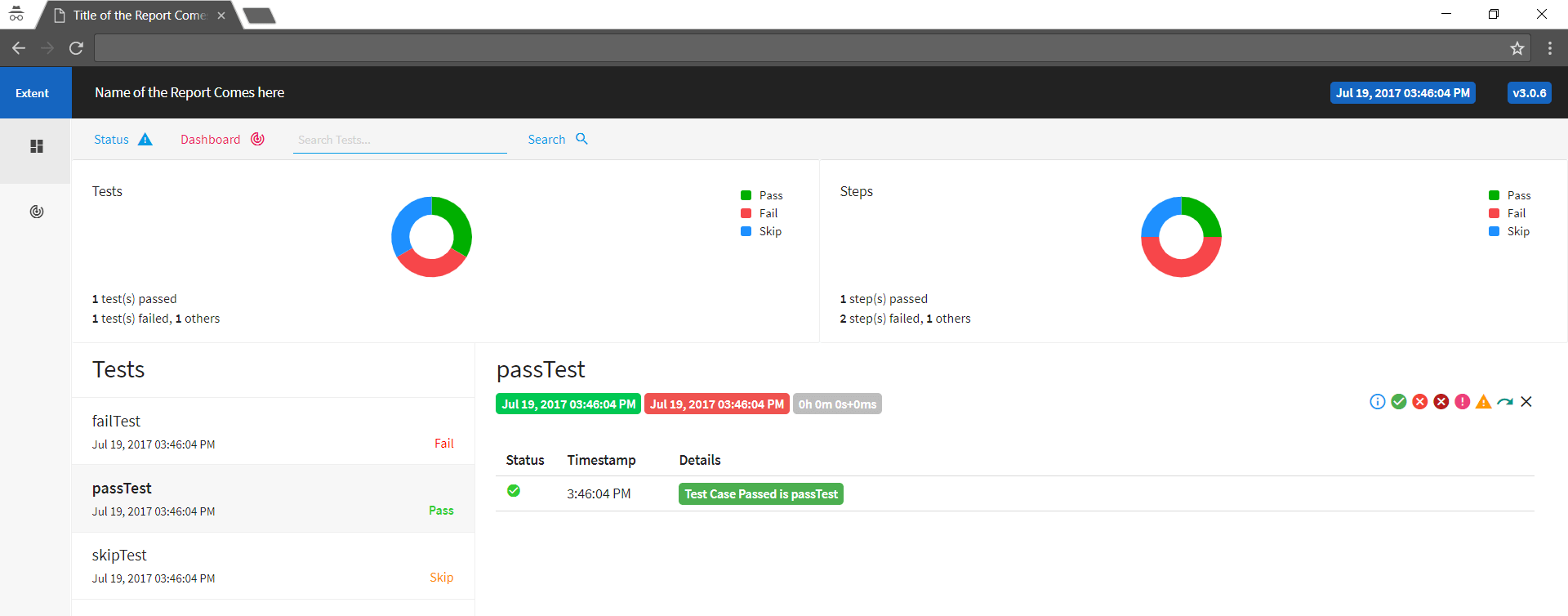

Test Summary Report:

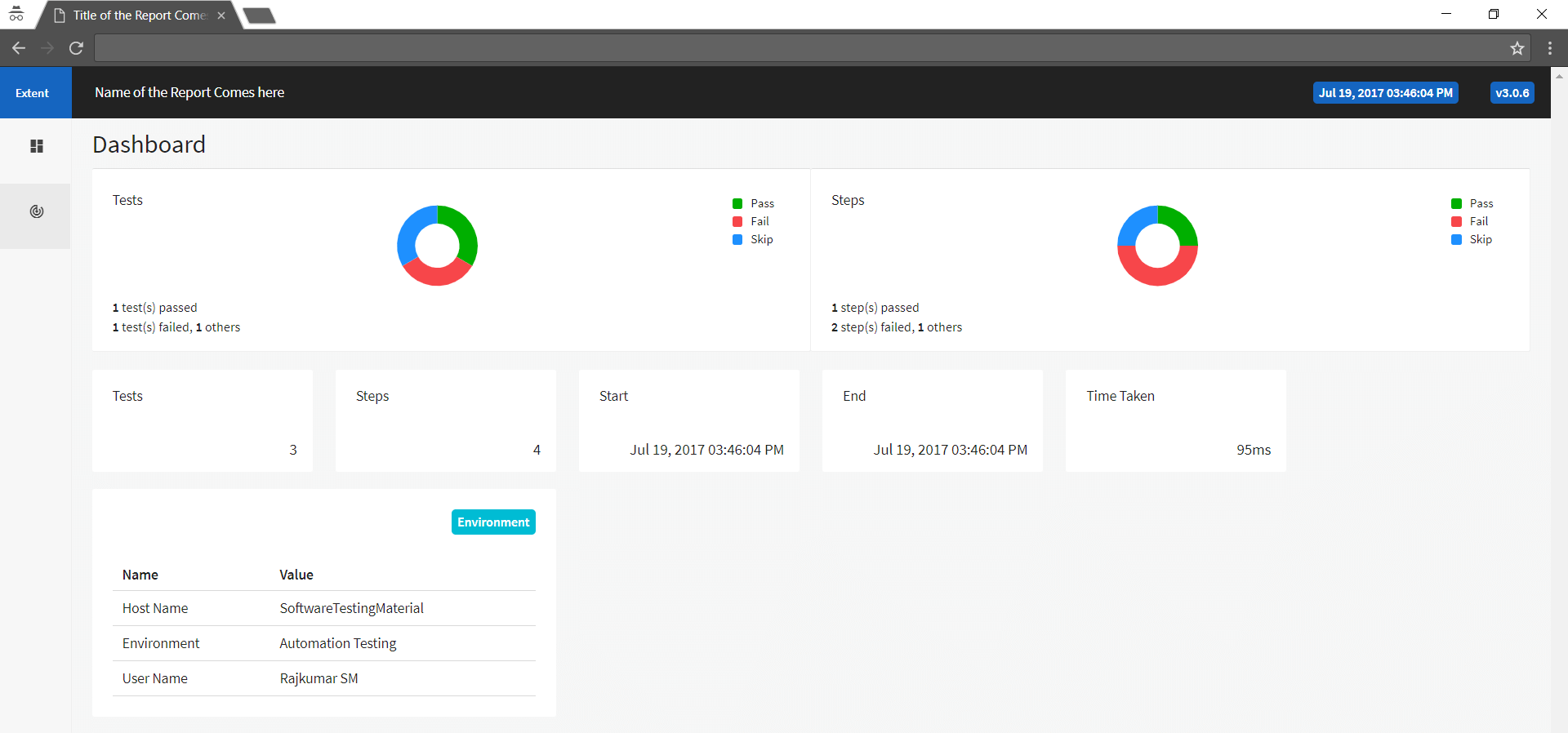

Graphical Report with PIE Charts:

Check this post to learn “How To Insert Captured Screenshots in Extent Reports“

If you have any queries, please comment below. Like this post, don’t forget to share it.
